- Ultra high resolution and consistency of image clarity
- Lower distortion
- Super high image peripheral brightness ratio
- Excellent optical properties are maintained at different object distances

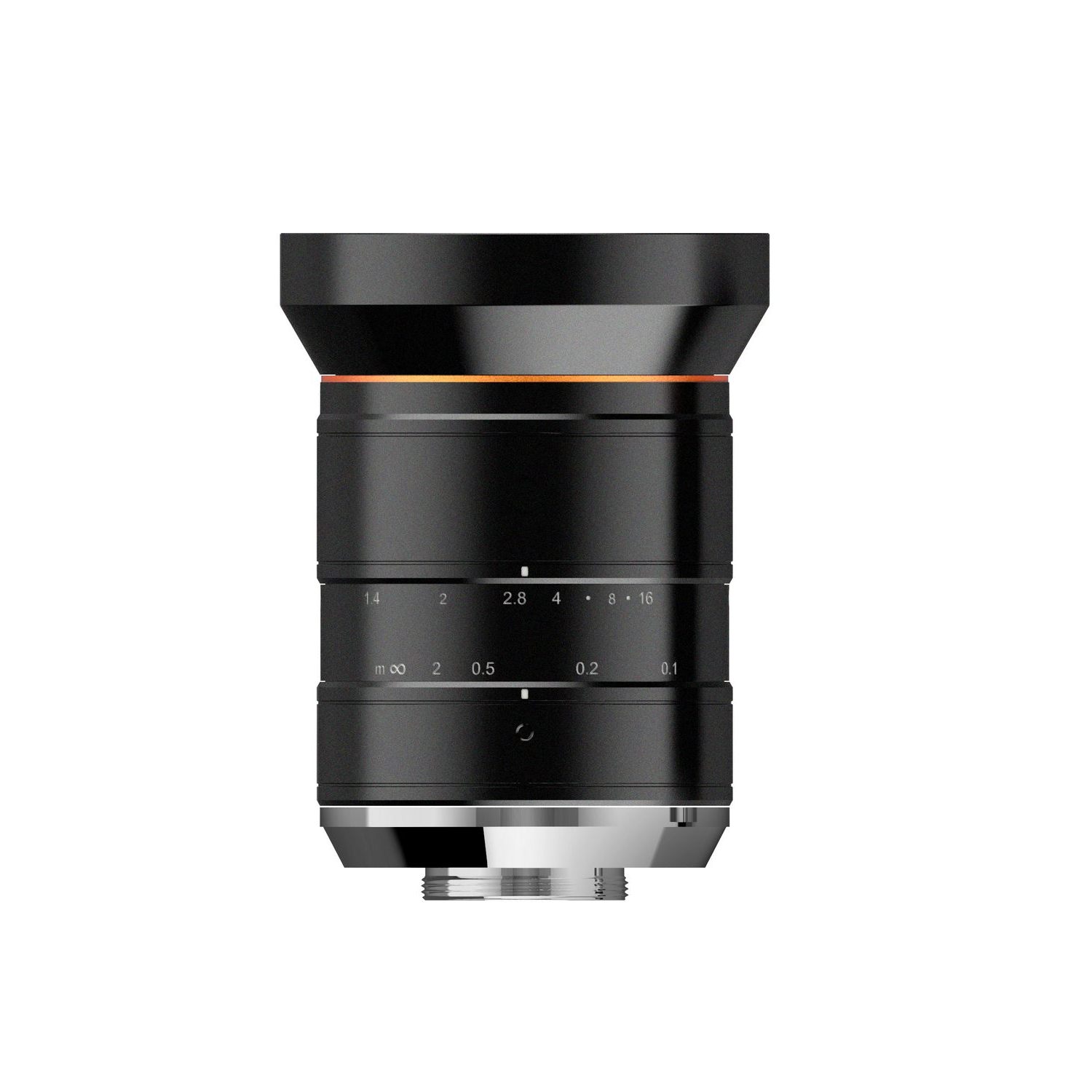

MVL-KF0814M-12MPE
HIKROBOT Lens, FA Series, KF
HIKROBOT Lens, FA Series, KF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-KF0814M-12MPE |
| Type | 8mm, F1.4, 1.1″, 12MP Lens, C-Mount | |
| Performance | Focal length | 8 mm |
| F-Number | F1.4 ~ F16 | |
| Image Size | Φ17.6 mm(1.1”) | |
| Distortion | 5.5% | |
| Minimum Object Distance | 0.1 m | |
| Field of View | D（17.52mm）：98.4° H（14.14mm）：84.8° V（10.35mm）：68° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M58 × 0.75 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

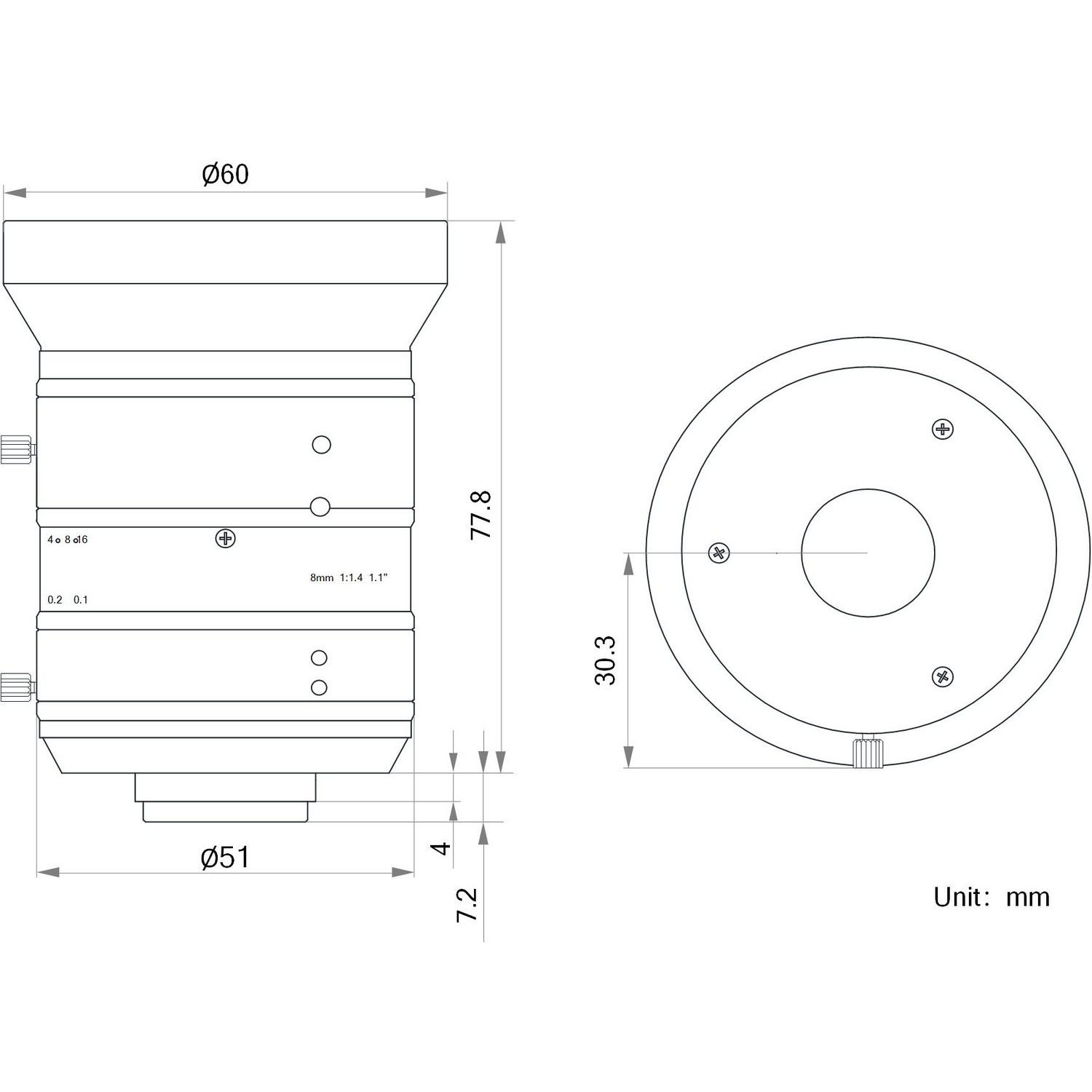

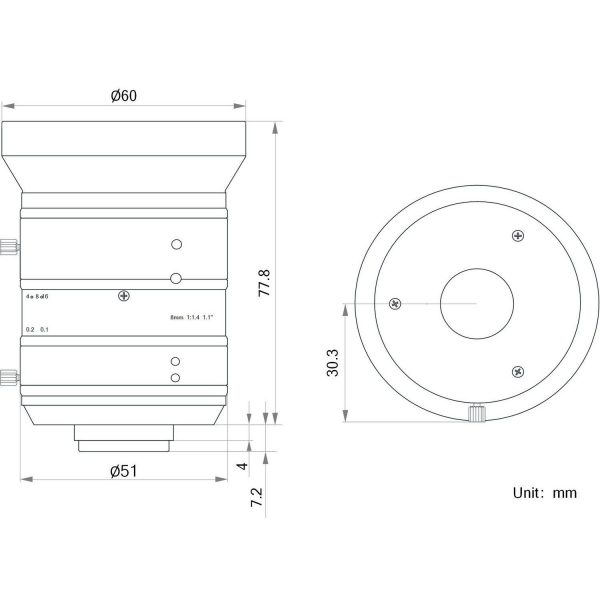

| Dimension | Φ60 × 77.8 mm | |
| Weight | 371 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
