- Ultra-high resolution, supporting 3.1μm resolution
- Excellent consistency of image clarity, with large aperture, low distortion, low chromatic aberration and high relative illumination
- Maximum image circle Φ37 mm, applicable to APS-C area scan and 4K 7μm line scan cameras

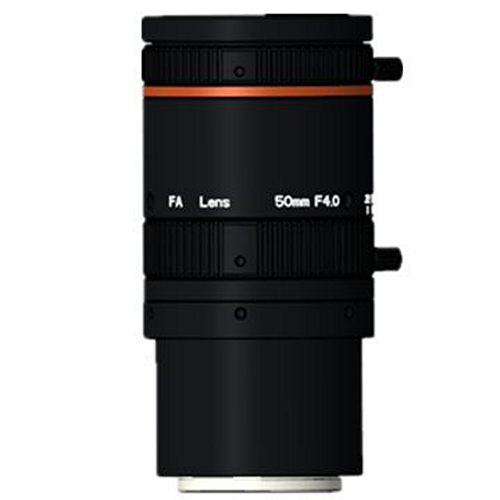

MVL-AF5040M-M42
HIKROBOT Lens, FA Series, AF
HIKROBOT Lens, FA Series, AF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-AF5040M-M42 |
| Type | 50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.33X, M42-Mount | |
| Performance | Focal length | 50 mm |
| F-Number | F4 ~ F22 | |
| Image Size | Φ37 mm | |
| Optical Distortion | 0.21% | |
| Magnification Range | 0.33x ~ 0.01x | |
| Working Distance Range | 150 ~ inf mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M52×0.75 | |
| Mount | M42×P1 | |
| Flange Back Length | 12 mm | |

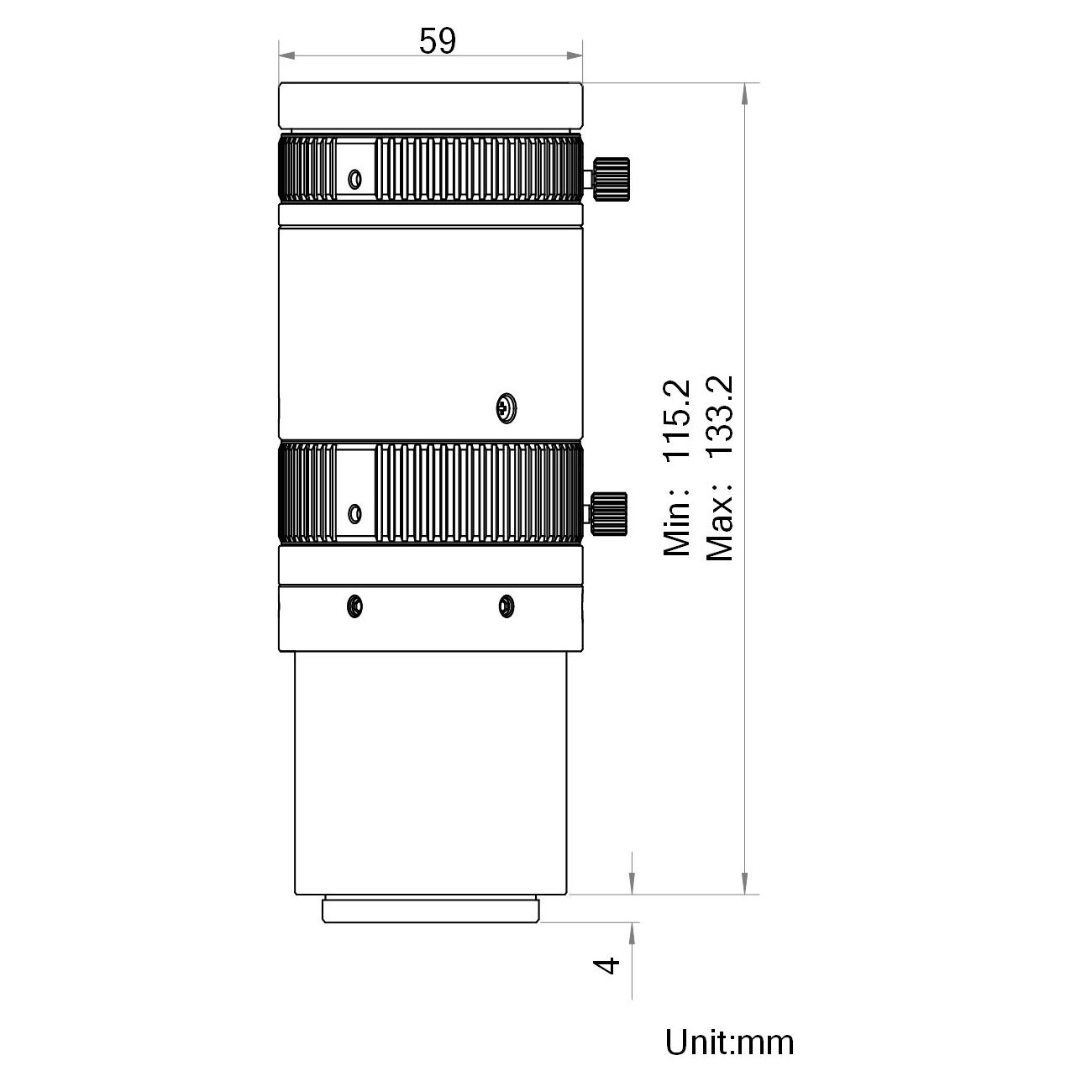

| Dimension | Φ59 × 133.2 mm | |
| Weight | 615 g | |
| Temperature | -10 ~ 50℃ | |
| General | Certification | RoHS2.0 |
