- High precision lens, suitable for 4K7U linear array cameras
- Excellent image clarity consistency, large aperture, low distortion
- Ultra high resolution at maximum aperture F2.4
- Maximum image size Φ29mm

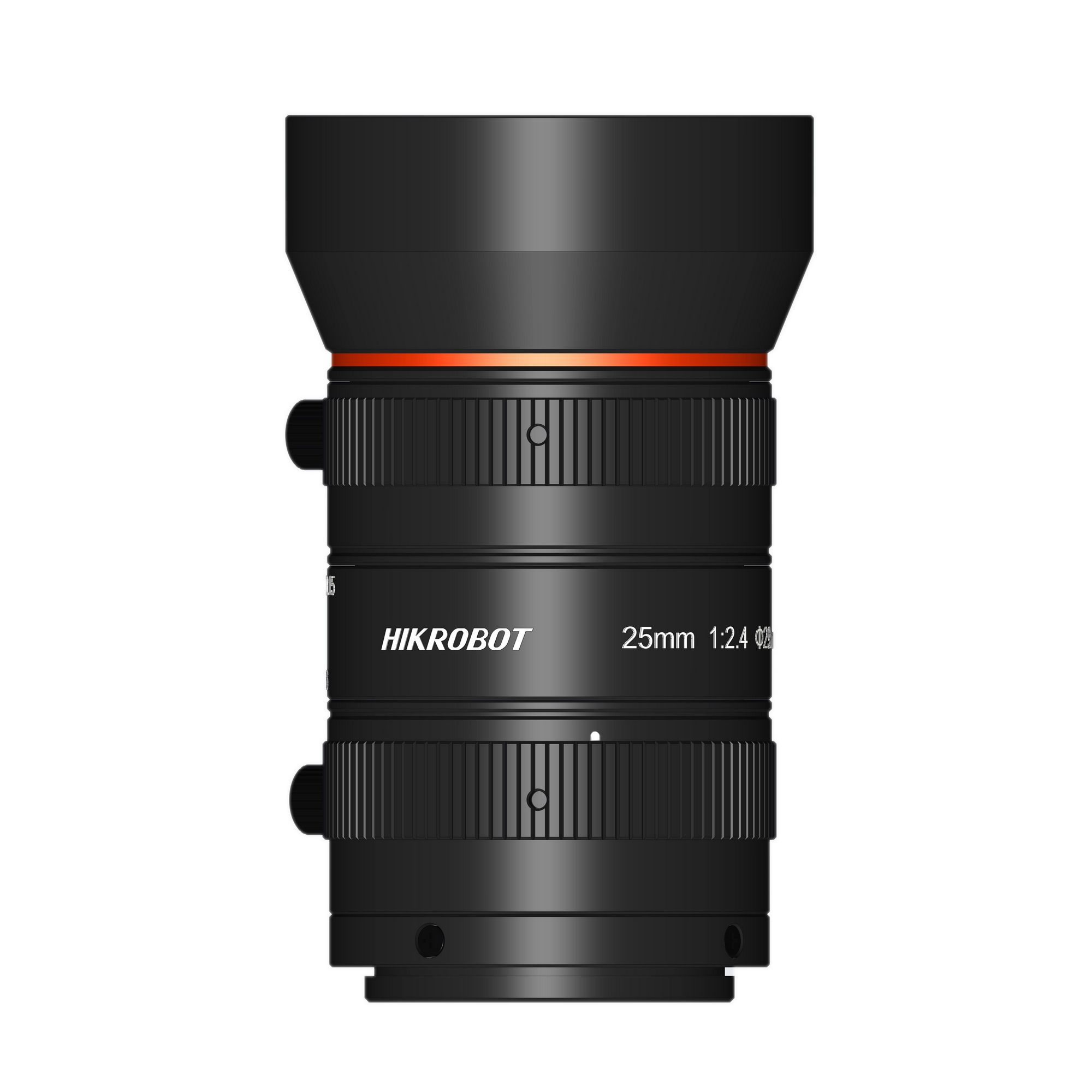

MVL-AF2524M-M42
HIKROBOT Lens, FA Series, AF
HIKROBOT Lens, FA Series, AF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-AF2524M-M42 |
| Type | 25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount | |
| Performance | Focal length | 25 mm |
| F-Number | F2.4 ~ F16 | |
| Image Size | Φ29 mm | |
| Optical Distortion | -0.34% | |
| Magnification Range | 0.143x ~ 0.001x | |
| Working Distance Range | 150 ~ inf mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M58 × P0.75 | |
| Mount | M42 × P1 | |
| Flange Back Length | 12 mm | |

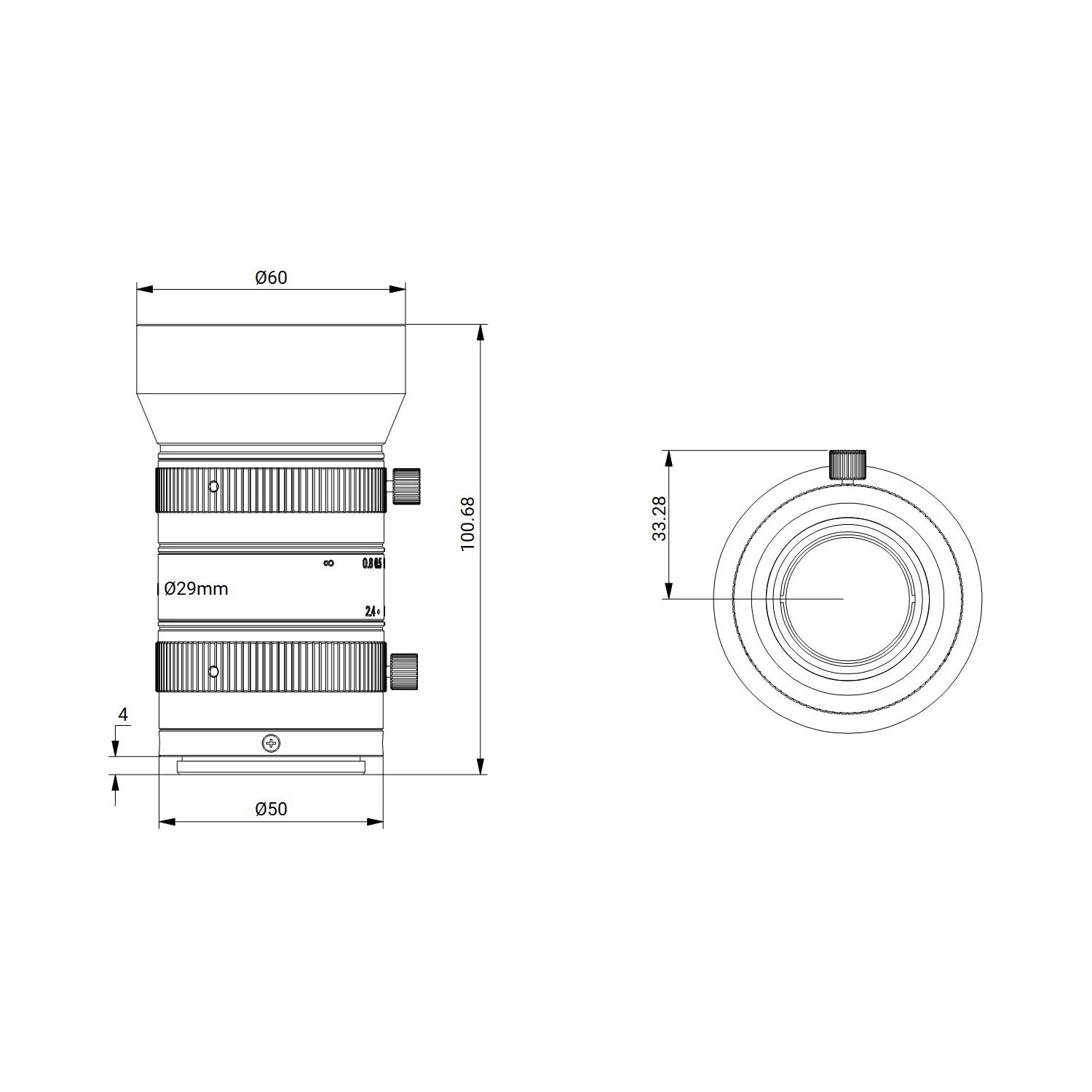

| Dimension | Φ60 × 96.68 mm | |
| Weight | 501 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
